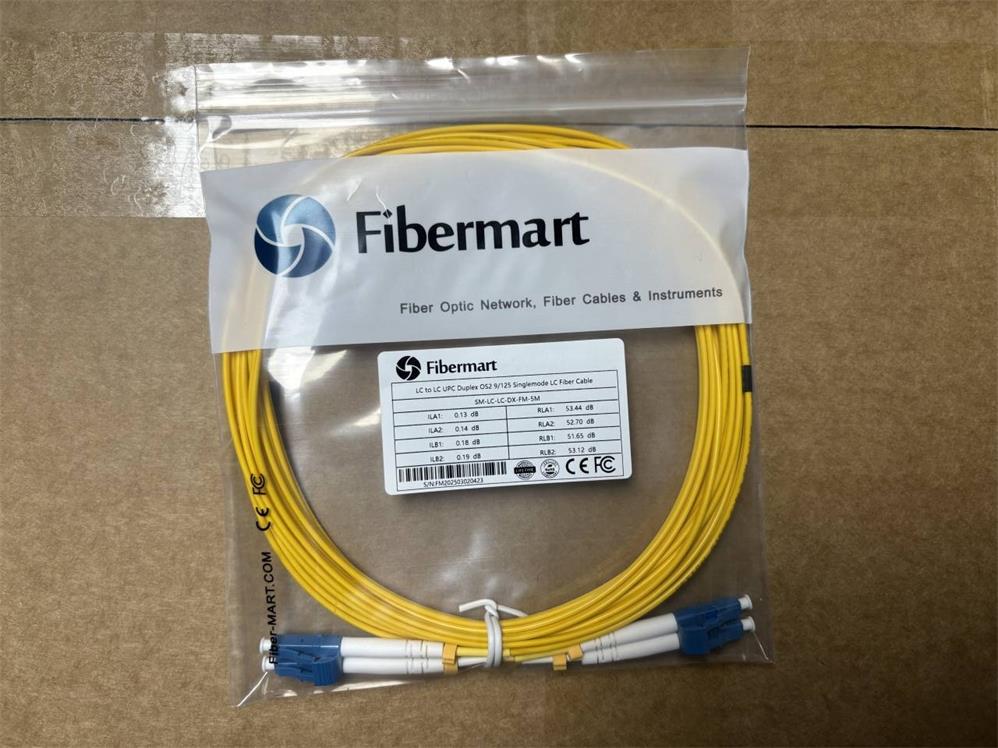

LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

Product Item: #10003
P/N: SM-LC-LC-DX-FM
Starting at: US$3.26

Please Choose:








Order Today, Ship before 07/09/2024, from U.S. or HK
Discount Prices
Quantity Unit Price Discount
200-999 US$3.10 5%
1,000+ US$2.93 10%
  • Description
  • Datasheet
  • Tags

LC UPC to LC UPC Duplex 9/125um Singlemode LC Fiber Cable, Duplex LC Patch Cable



Fiber Patch Cables also known as fiber jumpers or fiber patch cords. Fiber optic LC patch cable is one of most commonly used components in fiber optic network.Buy Duplex LC Fiber Cable, Buy Duplex LC Cable at Fiber-Mart.com
The Definition of 'mode' as in multimode refers to the transmitting mode of the fiber optic light in the fiber optic cable core.
Singlemode fiber optic patch cables send one light signal at a time, and can be used for longer runs than multimode because they have more resistance to attenuation. Buy LC Cable at Fibermart
The core of a single mode fiber optic cable is 9/125μ (micron).
Single mode fiber optic patch cables can support gigabit ethernet applications for up to 10 kilometers.



Key Features

  • LC-LC Connectors
  • Singlemode Duplex fiber optic cable
  • Micron: 9/125um
  • Complete with Lucent Technologies aqua jacket
  • Bandwidth transmitting rates up to 10 gigabits
  • All of our fiber optic patch cables feature the high degree connectors
  • 100% optically tested to ensure high performance
  • Color: Yellow



Specifications

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 1310,1550 1310,1550 1310,1550 1310,1550
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature -40~75 -40~75 -40~75 -40~75
Storage temperature -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9



Custom & OEM

LC Patch Cable, SM Patch Cable

Fiber-Mart is manufacturer and supplier of fiber optic cable, fiber patch cable. If you have any special requirement, Please contact us by email to [email protected]



1. Customize Jacket Materials

PVC OFNP LSZH OFNR



2. Customize Cable Color

Red Blue Grey Purple



3. Customize Cable Connector

D4 SMA905 VF45 MU



4. Customize Cable Length

5M 10M 50M 100M



5. OEM Label, Printing and Boot Color

NOTE: If you need customize others, welcome to contact [email protected]



Fiber Type vs. Speed and Distance - Help you choosing the right Fiber Optic Cable Type



Designation Core/Cladding
Diameter(um)
Type Gigabit Ethernet
Distance(meters)
10 Gigabit Ethernet
Distance(meters)
OM1 62.5/125 Multimode 300 Meters at 850 nm
600 Meters at 1310 nm
33 Meters at 850 nm
300 Meters at 1310 nm
OM2 50/125 Multimode 600 Meters at 850 nm
600 Meters at 1310 nm
82 Meters at 850 nm
300 Meters at 1310 nm
OM3 50/125 Multimode 1000 Meters at 850 nm
600 Meters at 1310 nm
300 Meters at 850 nm
300 Meters at 1310 nm
OM4 50/125 Multimode 1040 Meters at 850 nm
600 Meters at 1310 nm
550 Meters at 850 nm
300 Meters at 1310 nm
SM 9/125 Singlemode 5 km at 1310 nm
5 km at 1550 nm
10 km at 1310 nm
10 km at 1550 nm





Fibermart Fiber Patch Cable Datasheet







Datasheet to Download

Customer Reviews

Displaying 11 to 20 (of 22 reviews)

by Hiscox
Date Added: 06/23/2022
High-quality LC to LC UPC Duplex patch cables, stable transmission, convenient for welding, fast and stable transmission.

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Joseph
Date Added: 05/27/2022
The Fibermart's LC to LC UPC Duplex cables I bought were packaged very well, and worked as advertised. Thanks.

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Wilfrid Alonzo
Date Added: 05/17/2022
The LC duplex cables I purchased are working well on my application now, and everything goes well. Really perfect, thanks.

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Sandra Solis
Date Added: 04/19/2022
The ordering process worked out flawlessly and the product fulfills all my expectations. I’m operating the fibers together with Fibermart transceivers at 10.3Gbps. No bit errors after a week of operation.

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Zubair Syed
Date Added: 03/25/2022
Trust fibermart lc duplex cables, fast delivery and super low loss with good quality jackets, worldclass!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Figueredo
Date Added: 03/17/2022

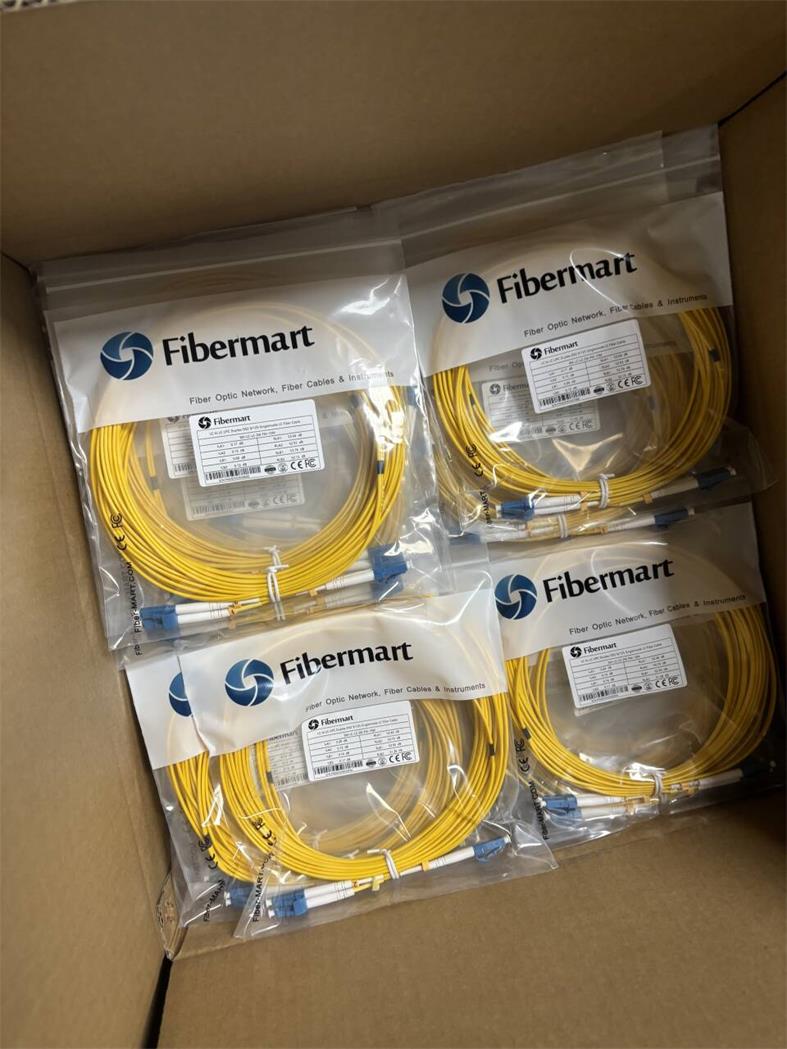

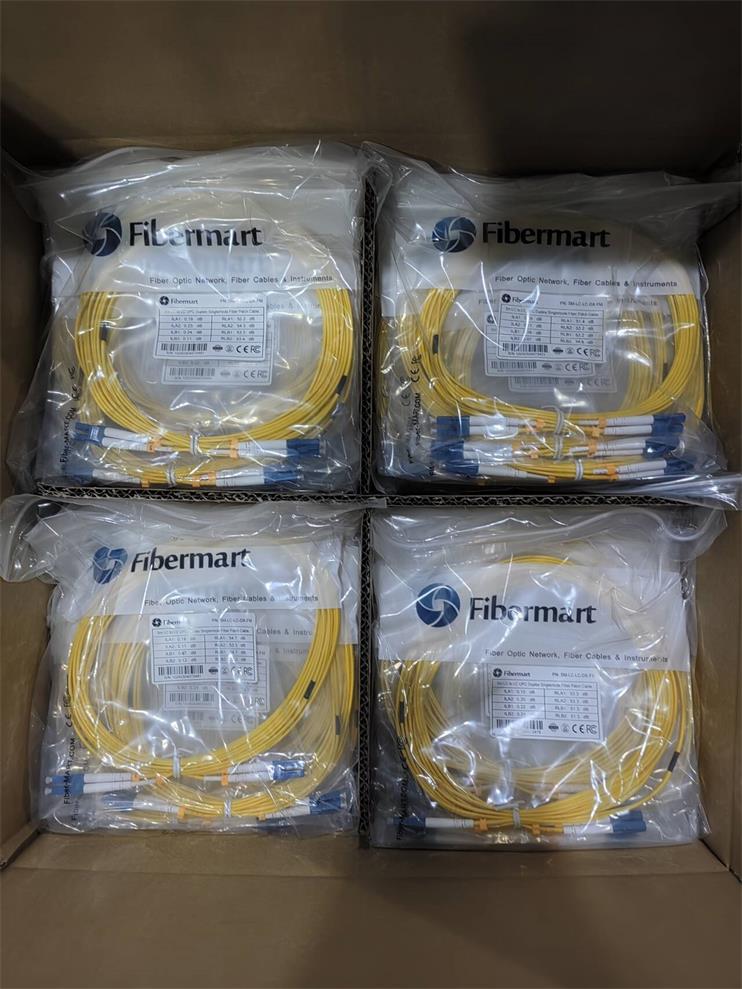

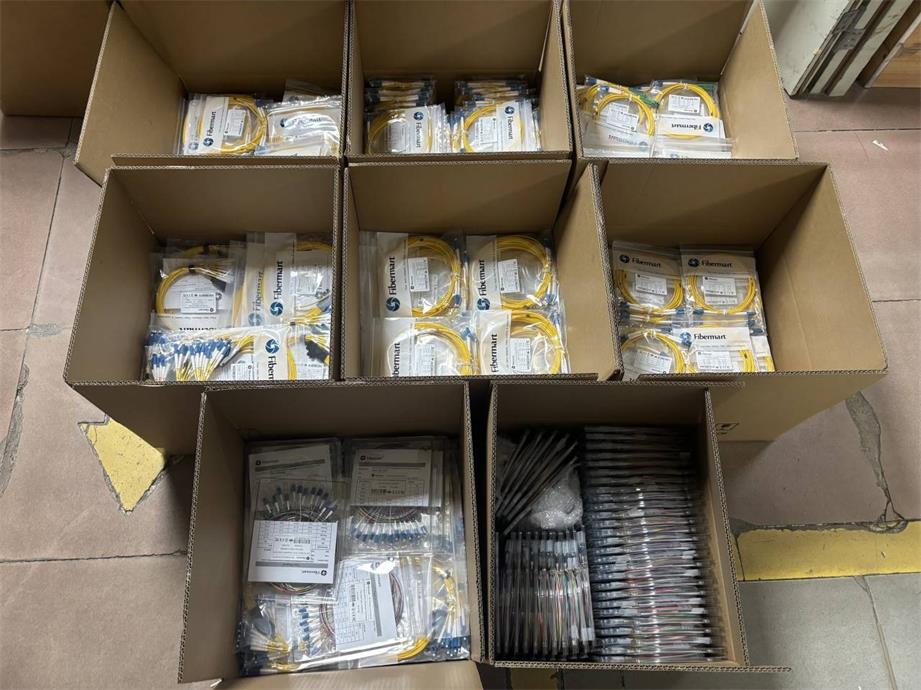

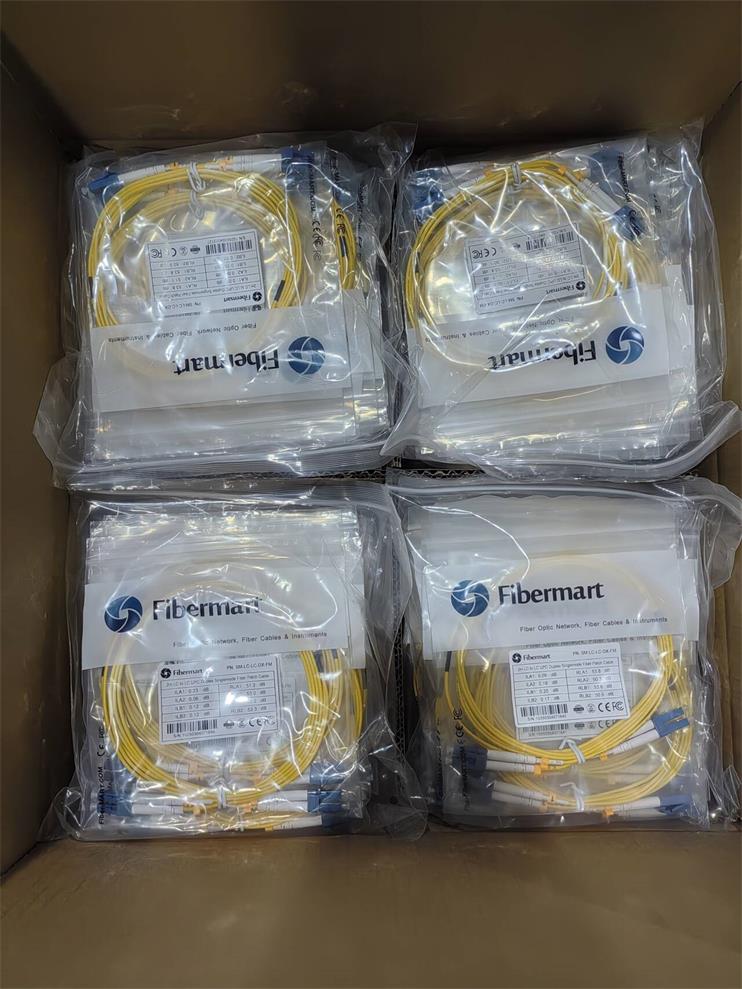

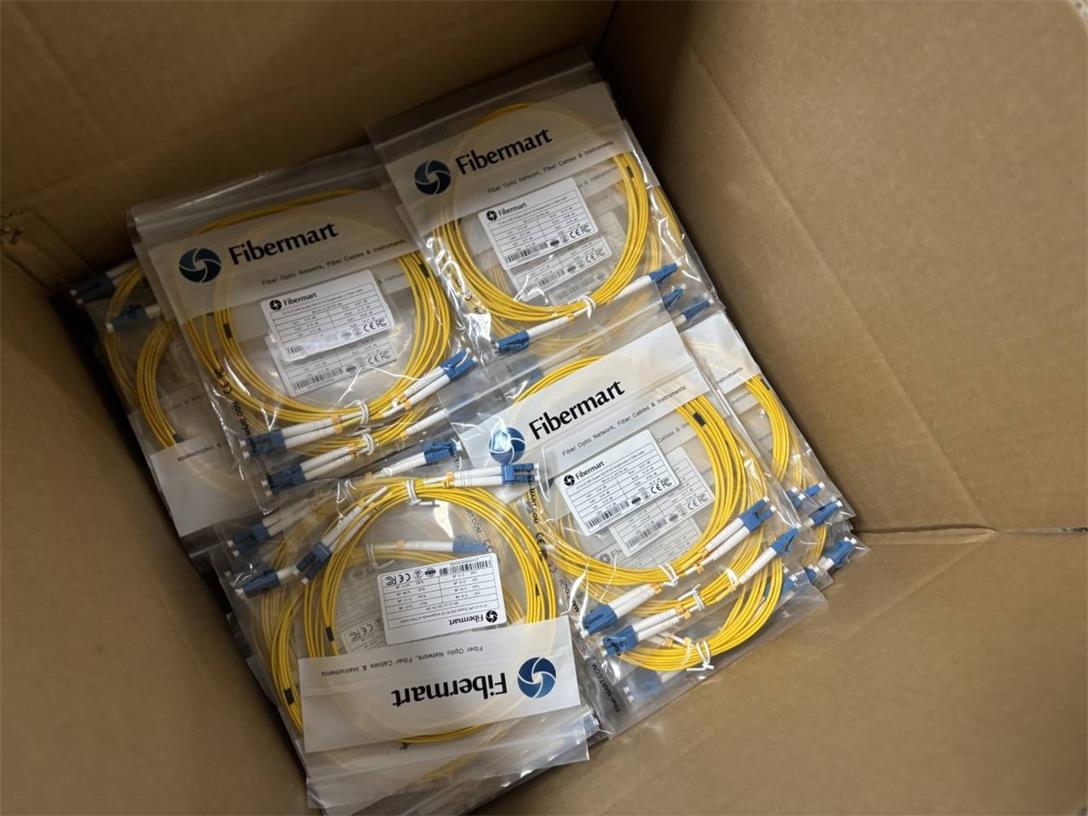

This lc duplex cable comes with low loss and high quality, see the pictures, we get 200pcs with very good delivery and pricing!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Wilson
Date Added: 03/11/2022
Well built lc fiber cable in good quality, low loss and great service we got from fibermart! GOOD JOB!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Shevone Allen
Date Added: 06/18/2021
Arrived with good condition, lc to lc duplex patch cable low loss and endurable jacket, great!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Valev Ehsan
Date Added: 05/19/2021
It arrived with no problem, fast delivery!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable

by Williams
Date Added: 04/27/2021
Low dB in IL loss, good job!

Rating: 5 of 5 Stars [5 of 5 Stars]
LC to LC UPC Duplex OS2 9/125 Singlemode LC Fiber Cable
